Klemflenser

Klemflens Ø50mm 6'' 76,2/120,7 hunn

Varenummer: 5062
kr 5 227,50 (veiledende pris)
Construction Verdi
Konstruert materiale Puverlakkering

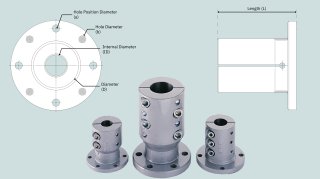

Dimensions Verdi
(L) Lengde 140mm / 5.5in
(D) Diameter 76.2mm / 3in
(ID) Indre diameter 50mm / 2in
(a) 120.7mm / 4.8in
(b) 17mm / 0.7in
*Compatible to fit with shafts with a diameter of 50mm / 2in
Flanges and flexible couplings Verdi
Gear box model Hurth: HSW800, Tecknodrive: TM265, Tecknodrive: TM265A, Twin Disc: MG5050, Twin Disc: MG506, Twin Disc: MG5061, Twin Disc: MG507, Yanmar (Kanzaki): KMH60A, Yanmar (Kanzaki): KMH61A, Yanmar (Kanzaki): KMH61V, ZF: IRM280A, ZF: IRM301, ZF: ZF285A, ZF: ZF286A, ZF: ZF80A, ZF: ZF85A
Ideal vessel integration Verdi
Typical vessel class Yrkesbåt, Motorbåt, Seilbåt
