Klemflenser

Klemflens Ø40mm 5'' 65/100

Varenummer: 4052
kr 5 280,00 (veiledende pris)
Construction Verdi
Konstruert materiale Puverlakkering

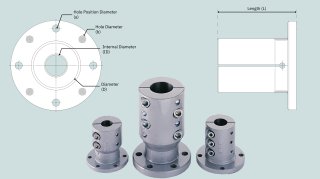

Dimensions Verdi
(L) Lengde 110mm / 4.3in
(D) Diameter 65mm / 2.6in
(ID) Indre diameter 40mm / 1.6in
(a) 100mm / 3.9in
(b) 10.5mm / 0.4in
*Compatible to fit with shafts with a diameter of 40mm / 1.6in
Flanges and flexible couplings Verdi
Gear box model Yanmar (Kanzaki): KBW20, Yanmar (Kanzaki): KBW21, Yanmar (Kanzaki): KM4A, Yanmar (Kanzaki): KM5A, Yanmar (Kanzaki): KMH4A
Ideal vessel integration Verdi
Typical vessel class Yrkesbåt, Motorbåt, Seilbåt
