Retract mechanical
Ø250mm TC 24V
Varenummer: 13 0650
kr 143 999,00
(veiledende pris)
| Sparepart for | Verdi |
|---|---|
| Main products > Thrusters > DC > ERL | ERL170/250TC-48V ERL170/250TC-24V |
| Main products > Thrusters > DC > ERV | ERV170/250TC-24V ERV170/250TC-48V |
| Main products > Thrusters > DC > SR_SRV_SRL | SRV210/250TCOBS SRL170/250TC SRV210/250TC SRV170/250TC |
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEngelskpdf
Retract mechanical
SP104776C
13 0650
07.06.2026
Veiledning: Slik navigerer du reservedeler
Nedenfor vises toppnivå av reservedeler som er tilgjengelig for deg. Hvis du ønsker et komponent innenfor den aktuelle enheten, klikk på navnettiketten under bildet og du vil få tilgang til en detaljert liste med reservedeler.
Hvis ingen ytterligere reservedeler er tilgjengelig betyr det at gjeldende enhet må kjøpes samlet grunnet service- eller installasjonskrav.
+
-
⇔
PHOTO NOT AVAILABLE
2
Cable actuator
Varenummer: 150050
Antall: 2
PHOTO NOT AVAILABLE
3
Cylinder head cap screw
Antall: 4
M4x12 Unbraco
PHOTO NOT AVAILABLE
5
Sensor cable SR
Varenummer: 150055
Antall: 1
PHOTO NOT AVAILABLE
7
Hex lock nut
Antall: 1
DIN 985 - M4 x 0,7 A4
PHOTO NOT AVAILABLE
8
Hex socket set screw flat point
Antall: 1
DIN 913 - M4 x 20 A4
PHOTO NOT AVAILABLE
9
Hex socket flat countersunk head screw
Antall: 2
DIN 7991 - M4x30 A4
Kits
-
SM143716 20 1180 A
-
SM170663 SM170663
-
SM175313 SM175313
-

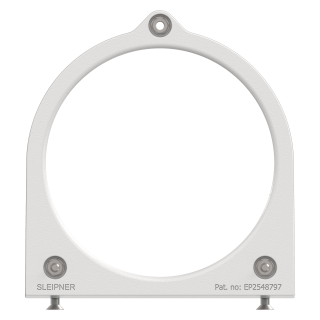

Retract ring support kit 250mmSM900585 6 2143-OBS
-
SM901300B 10 2076
-
SM901301 10 2077
-
SM901479 140100

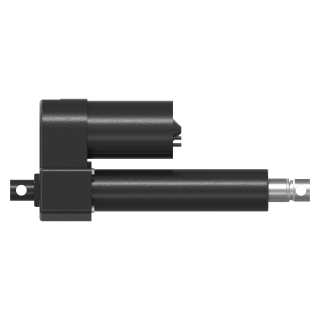

1 Actuator kit 24 v Retract 185-250mm
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Locking bolt
Varenummer: 140003
Antall: 1
PHOTO NOT AVAILABLE
3
Split pin
Antall: 2
ISO 1234 - 3,2 x 20 A4
PHOTO NOT AVAILABLE
5
Flat washer without chamfer
Antall: 1
DIN 125 - A 13 A4
PHOTO NOT AVAILABLE
6
Grommet kit
Varenummer: SM167587
Antall: 1
2 Adapter water proof SRV
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Adaptor for seals SRV sensor
Varenummer: SM-131070
Antall: 1
PHOTO NOT AVAILABLE
2
O-ring Ø14x3mm
Antall: 1
--
PHOTO NOT AVAILABLE
3
Composite shaft for SRV sensor
Varenummer: SM-131071
Antall: 1
PHOTO NOT AVAILABLE
4
O-ring Ø18x3mm
Antall: 1
--
PHOTO NOT AVAILABLE
6
DIN 125 - A 4,3
Antall: 2
Flat Washer
PHOTO NOT AVAILABLE
7
ISO 7045 - M4 x 40
Antall: 2
Screw
PHOTO NOT AVAILABLE
8
ISO 7045 - M4 x 55
Antall: 2
Screw

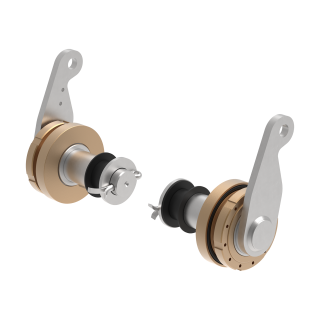

3 Aksel sett horisontal SRV130-210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Stuffing box
Varenummer: SM-123053
Antall: 2
PHOTO NOT AVAILABLE
2
Lifting arm complete PS
Varenummer: 140027
Antall: 1
PHOTO NOT AVAILABLE
3
Lock nut
Antall: 2
M64
PHOTO NOT AVAILABLE
4
O-ring
Antall: 2
DIN 3771 - 72,62 x 3,53
PHOTO NOT AVAILABLE
5
O-ring
Antall: 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
6
Thrust washer
Antall: 4
Ø48-Ø28 H=1,5
PHOTO NOT AVAILABLE
7
Flat washer without chamfer
Antall: 2
DIN 125 - A 29
PHOTO NOT AVAILABLE
8
Split pin
Antall: 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
9
Split pin
Antall: 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
10
Sleeve bearing
Varenummer: 140019
Antall: 2
PHOTO NOT AVAILABLE
11
Wype Ring
Varenummer: 140030
Antall: 2
PHOTO NOT AVAILABLE
12
Turn ring
Varenummer: 6 2140
Antall: 2
PHOTO NOT AVAILABLE
13
Sleeve bearing
Varenummer: 140060
Antall: 2
PHOTO NOT AVAILABLE
15
Split pin
Antall: 2
ISO 1234 - 3,2 x 20

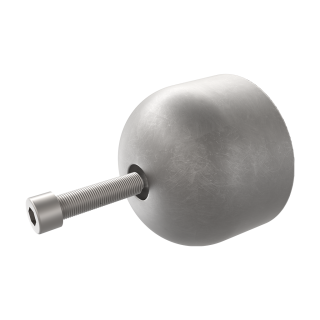

4 Anode Alu SE120/130/150/170/210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Anode - aluminium
Antall: 1
--
PHOTO NOT AVAILABLE
2
Hex socket cap screw
Antall: 1
DIN 912 - M6 x 30

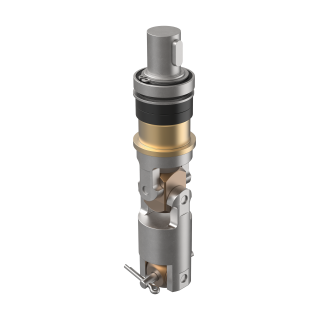

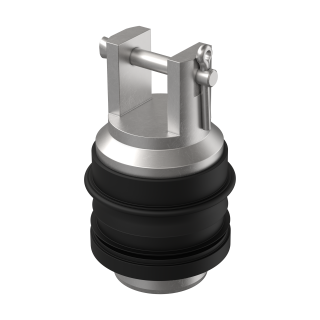

5 Retract drive shaft kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Retaining ring for shaft
Antall: 1
DIN 471 - 25 x 1,2
PHOTO NOT AVAILABLE
2
Deep groove ball bearings single row with two RS1 seals
Antall: 1
SKF 2RS1W 61805-2RS1
PHOTO NOT AVAILABLE
3
Spring Retaining Ring
Antall: 1
DIN 472 - 35 x 1,5
PHOTO NOT AVAILABLE
4
Rotary lip seal
Antall: 2
25 x 35 x 7
PHOTO NOT AVAILABLE
5
Bearing Sintered
Antall: 1
Ø25xØ32xL20
PHOTO NOT AVAILABLE
6
Parallel Key
Antall: 1
DIN 6885 - A 6 x 6 x 16
PHOTO NOT AVAILABLE
7
Flexible drive shaft
Antall: 1
250 mm
PHOTO NOT AVAILABLE
8
Locking pin
Antall: 1
Ø6 L45,5
PHOTO NOT AVAILABLE
9
Split Pin
Antall: 1
DIN EN ISO 1234 - 3,2x12

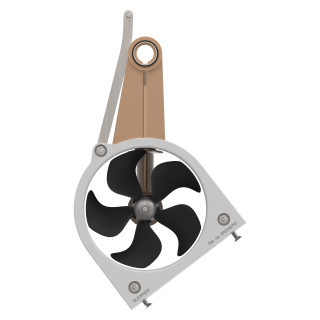

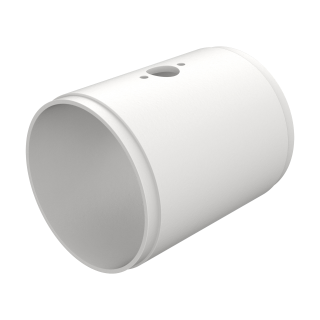

6 Tunnel sett retract thruster Ø250mm, TC komplett
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Thrust washer
Antall: 4
Ø10 x 18 x 1mm
PHOTO NOT AVAILABLE
3

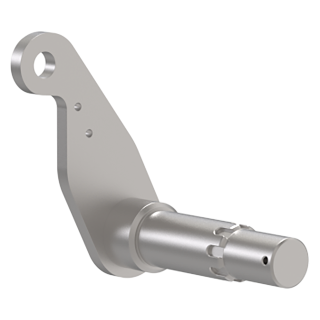

Lifting rod
Varenummer: 140007
Antall: 1
PHOTO NOT AVAILABLE
4
Hex head screws
Antall: 2
DIN 933 - M10 x 20
PHOTO NOT AVAILABLE
5
Sleeve bearing
Varenummer: 140024
Antall: 2
PHOTO NOT AVAILABLE
6
Split pin
Antall: 2
ISO 1234 - 3,2 x 20
PHOTO NOT AVAILABLE
7
Split pin
Antall: 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
8
Wype Ring
Varenummer: 140030
Antall: 2
PHOTO NOT AVAILABLE
9
O-ring
Antall: 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
10
Turn ring
Varenummer: 6 2140
Antall: 2
PHOTO NOT AVAILABLE
14
Tunnel bracket
Varenummer: 140010
Antall: 1
Kits
-
SM143716 20 1180 A
-
SM900585A 6 2143

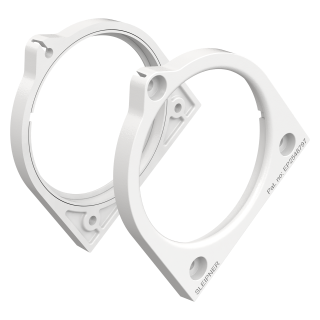

7 Retract Twist ring support kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔

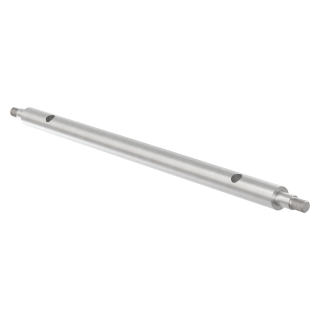

PHOTO NOT AVAILABLE
3
DIN 934 - M10
Antall: 8
Hex nut
PHOTO NOT AVAILABLE
4
DIN 7991 - M10x70 A4
Antall: 4
Hex socket flat countersunk head screw
PHOTO NOT AVAILABLE
5
Sliding band
Varenummer: 140151
Antall: 2
-1.png)
PHOTO NOT AVAILABLE
7
DIN 125 - A 10,5
Antall: 6
Flat washer without chamfer
PHOTO NOT AVAILABLE
8
DIN 985 - M10 x 1,5
Antall: 6
Hex lock nut
PHOTO NOT AVAILABLE
9
ISO 1234 - 3,2 x 20
Antall: 4
Split pin

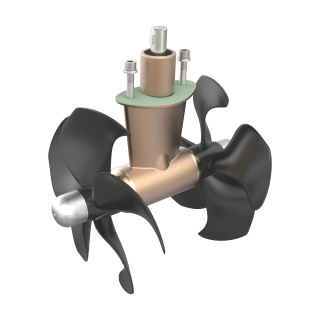

8 Girhus SRV170/210 med propell
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Mechanical sealing Ø35
Antall: 1
--
PHOTO NOT AVAILABLE
2
Bushing for drive pins
Antall: 1
--
PHOTO NOT AVAILABLE
3
DIN 3771 - 43,7 x 3,55 - NBR
Antall: 1
O-ring
Kits
-
SM143716 20 1180 A
9 Nedre ledd sett SRV130/170/210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Split pin
Antall: 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
2
Locking pin
Antall: 1
Ø6 L45,5
PHOTO NOT AVAILABLE
3
Drive shaft lower link
Antall: 1
PHOTO NOT AVAILABLE
4
Mechanical sealing Ø35
Antall: 1
PHOTO NOT AVAILABLE
5
Bushing for drive pins
Antall: 1

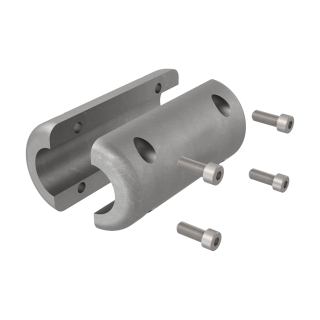

10 Anode brakett SRV thruster
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
DIN 934 - M4
Antall: 4
Hex nut
PHOTO NOT AVAILABLE
2
Anode SRV
Antall: 1
Anode SRV
PHOTO NOT AVAILABLE
3
Anode SRV
Antall: 1
Anode SRV
PHOTO NOT AVAILABLE
4
DIN 912 - M4 x 12
Antall: 4
Cylinder head cap screw

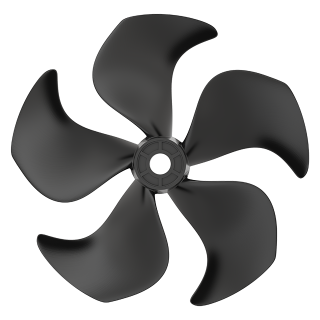

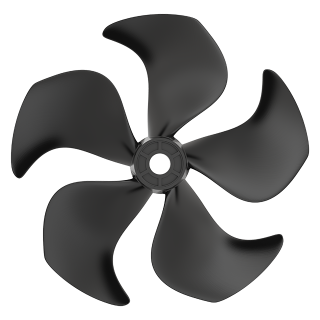

11 Girhus SE170/210 med propell
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
Kits
-
SM143716 20 1180 A
12 Girhus SE170/210 uten propell
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Shaft seal
Antall: 1
DIN 3760 - AS - 22 x 40 x 7 - NBR - Carbon Steel
PHOTO NOT AVAILABLE
2
Bolt
Antall: 2
DIN 912 - M10 x 50
PHOTO NOT AVAILABLE
3
Lock washer
Antall: 2
DIN 128 - A10
PHOTO NOT AVAILABLE
4
Washer
Antall: 2
DIN 125 - A 10,5
PHOTO NOT AVAILABLE
6
Drive pin
Antall: 2
ISO 8734 - 8 x 37
PHOTO NOT AVAILABLE
7
Washer for propeller
Antall: 2
DIN 125 - A 17
PHOTO NOT AVAILABLE
8
Nut for propeller
Antall: 2
DIN 985 - M16x2
Kits
-
SM143716 20 1180 A
